Precision ground and hardened bedways
The spindle is supported with precision roller bearings.
Head stock gears are made of high quality steel ground and hardened
Easy operating speed change levers
Removable gap is provided for larger diameter work
Easy operating gear box has various feeds and thread cutting function
With or without foot stand for optional
Right angle appearance or circular appearance for optional

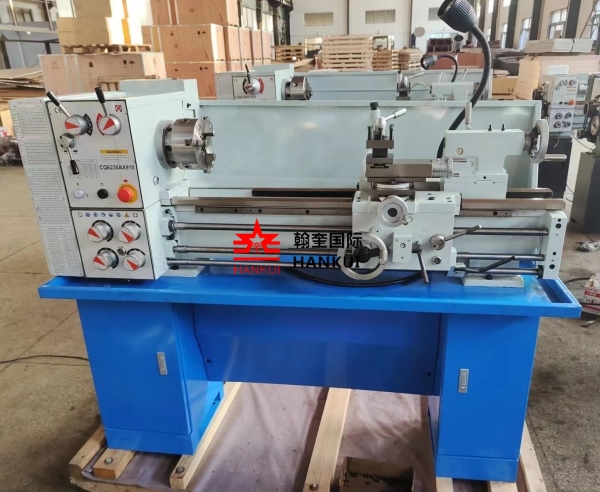

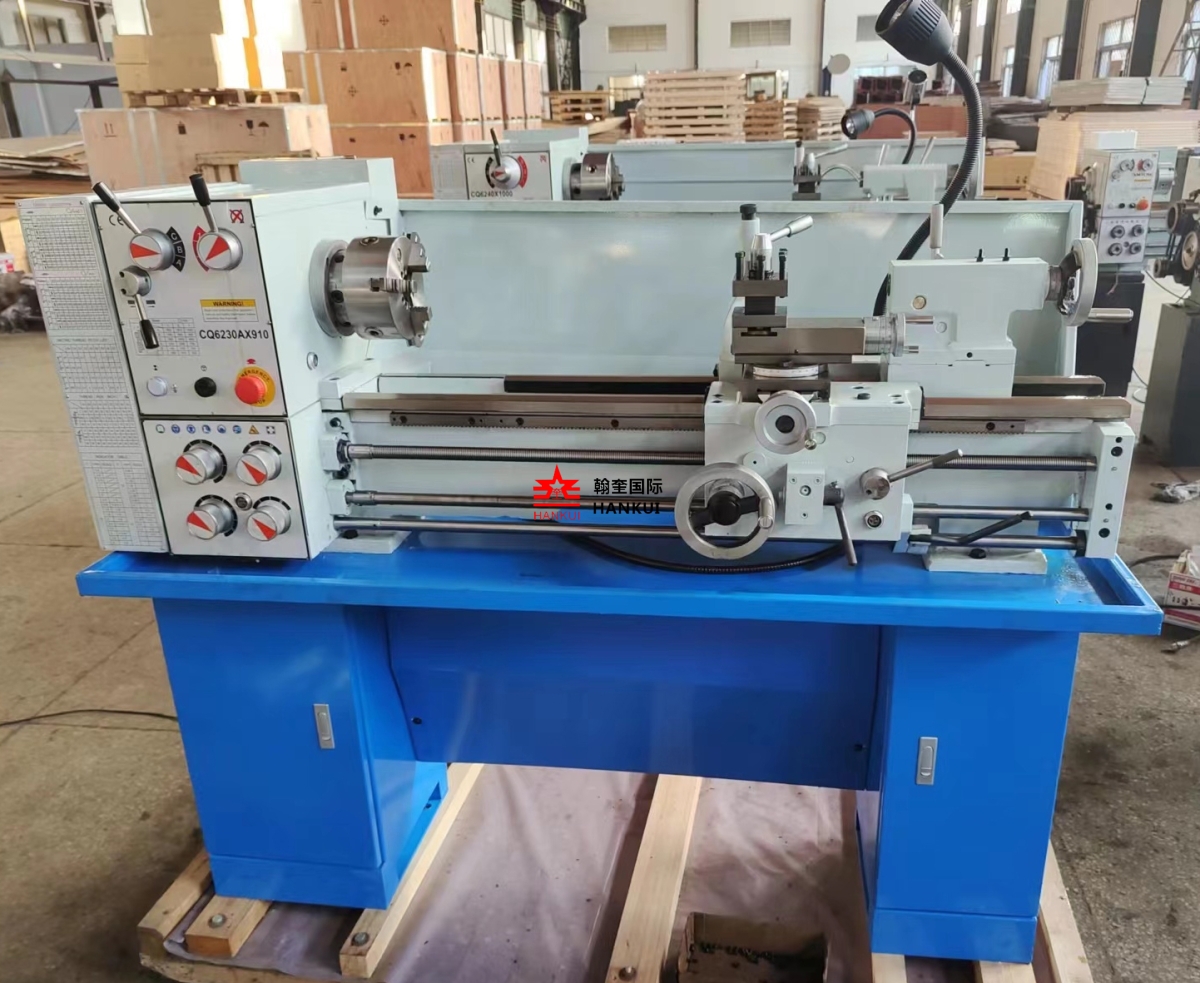

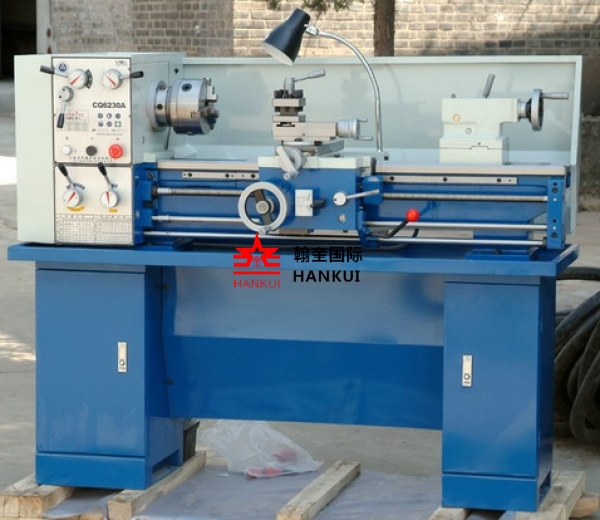

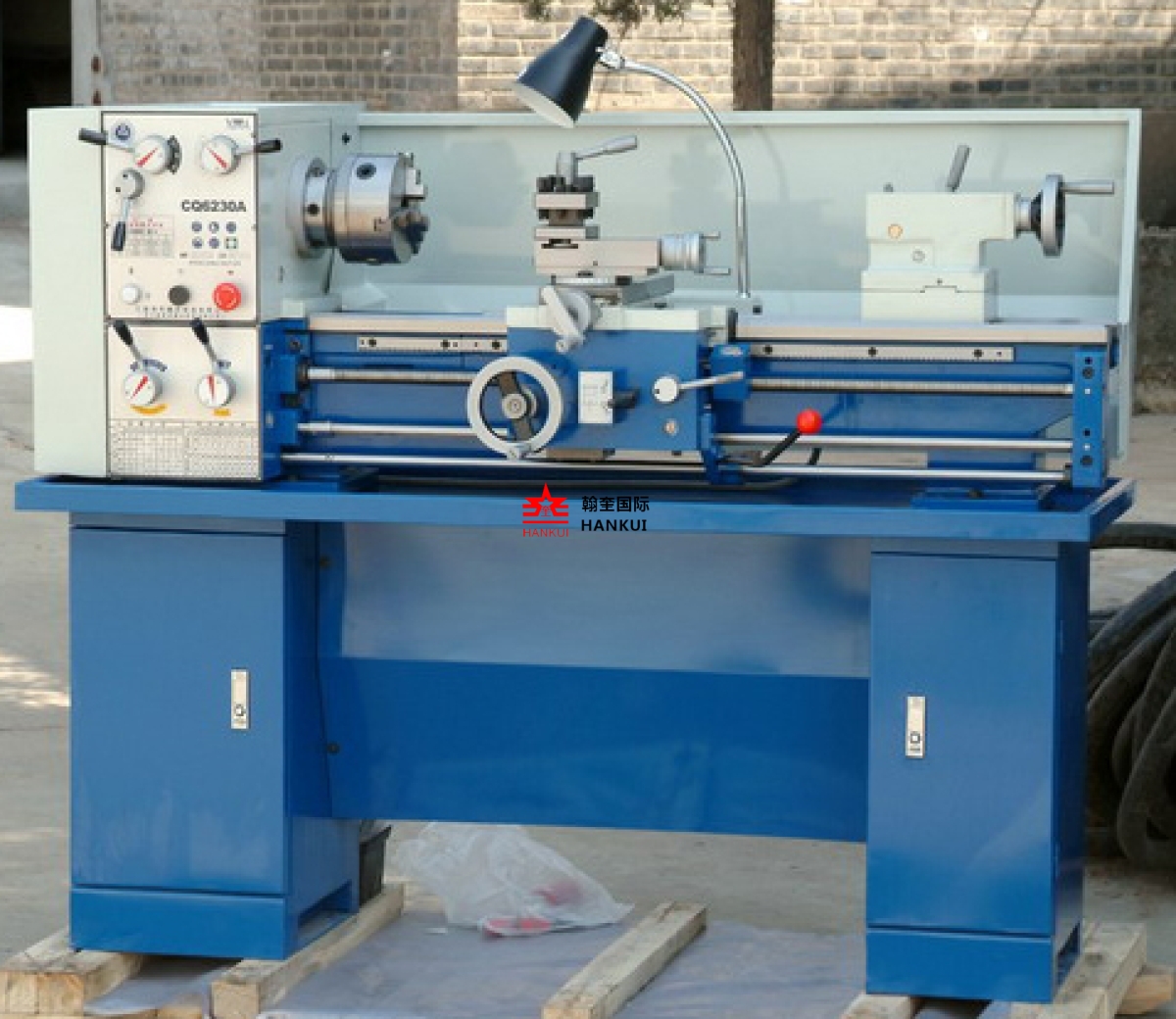

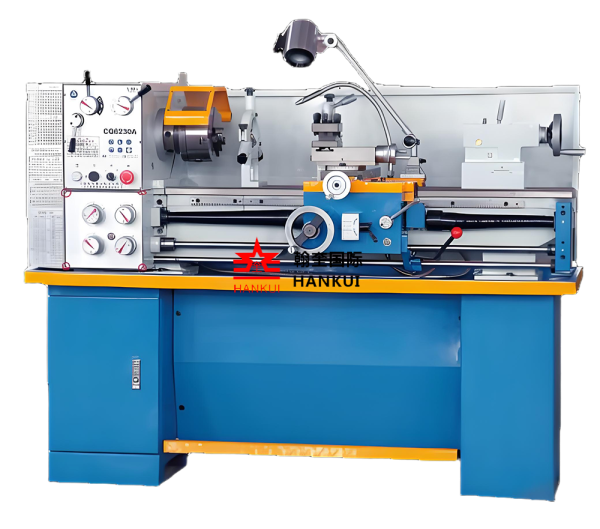

| Model | CQ6230A | CQ6320C | CQ6240 |
| Max.swing over bed | φ310mm | φ330mm | φ400mm |
| Max.swing over cross slide | φ180mm | φ180mm | φ250mm |
| Max. swing over gap | φ450mm | φ170mm | φ520mm |
| Distance between centers | 750/910/1000mm | 750/1000mm | |
| Width of bed | 181mm | 181mm | 218mm |
| Spindle bore | φ38mm | φ38mm | 52mm |
| Taper pf spindle bore | M.T#5 | M.T#5 | M.T#6 |
| Range of spindle speeds | 65-1810(1400)rpm | 65-1810rpm | 65-1810rpm |
| Taper of tailstock | M.T.#3 | M.T.#3 | M.T.#4 |
| Metric threads can be cut | 0.4-7mm | 0.4-7mm | 0.4-7mm |
| Inch threads can be cut | 4-60 T.P.I. | 4-60 T.P.I. | 4-60 T.P.I. |
| Range of longitudinal feeds | 0.0527-1.2912mm/rev | 0.0527-1.2912mm/rev | 0.0527-1.2912mm/rev |
| Range of cross feeds | 0.011-0.276mm/rev | 0.011-0.276mm/rev | 0.011-0.276mm/rev |
| Max.travel of cross slide | 130mm | 130mm | |
| Max.travel of top slide | 75mm | 75mm | |
| Max.travel of tailstock quill | 100mm | 100mm | |
| Motor power | 1.5Kw | ||
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
