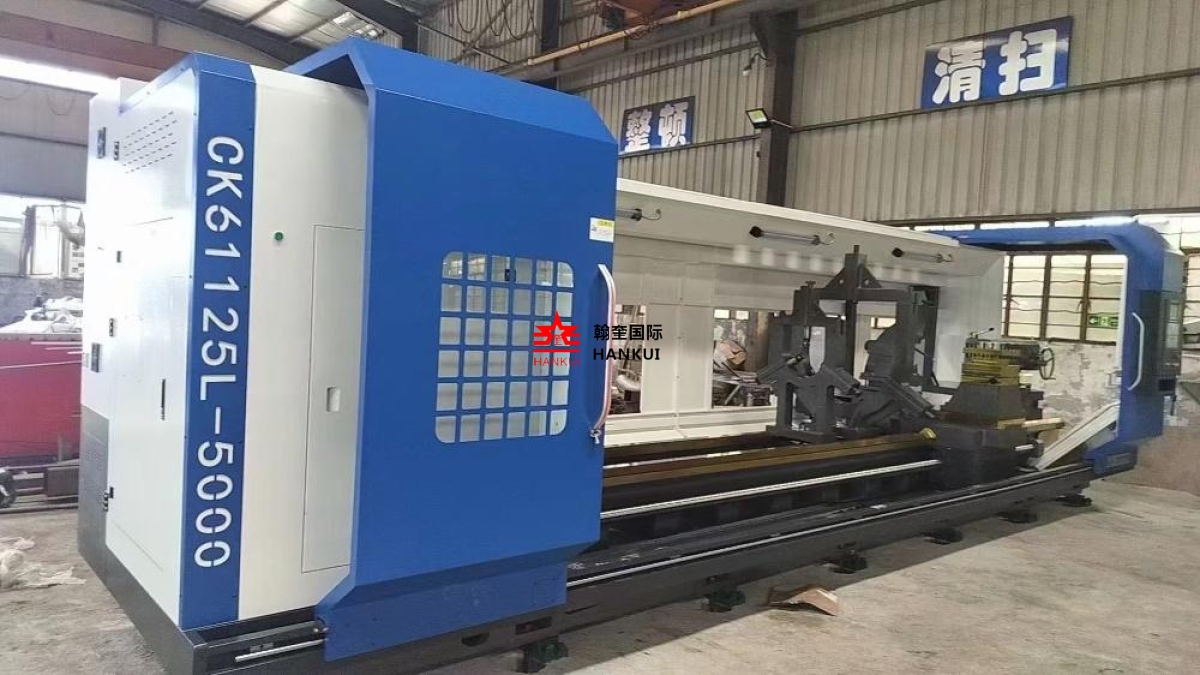

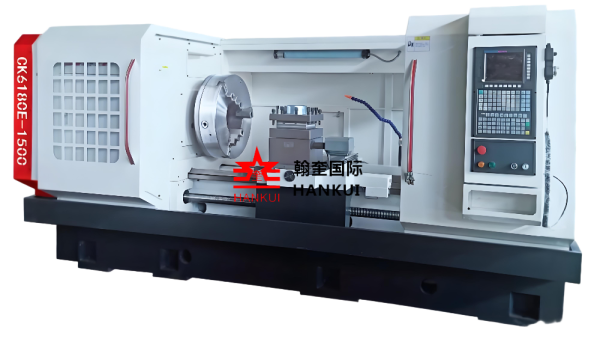

This series of products adopts a horizontal flat bed body integral casting structure. The bed body, headboard, saddle, legs and other basic components are all cast with resin sand and artificially aged, resulting in good overall stability of the machine.
The bed guide rail adopts hard rails, and the bed saddle adopts "plastic pasting" treatment. The moving parts can achieve micro feed to prevent crawling.
The feed system adopts servo motor, precision ball screw, and high rigidity precision composite bearing structure, with accurate positioning and high transmission efficiency.
The spindle aperture is 105mm, with high speed, wide speed range, and low overall noise. The main transmission is equipped with a three speed variable frequency motor to achieve stepless speed regulation within each gear.
The control system adopts Guangzhou CNC or other optional systems.
| PARAMETER | UNT | CKNC6132 | CKNC6136 | CKNC6140 | CKNC6150 | CKNC6163 | CKNC6180 | CKNC61100 | CKNC61125/1140 |
| MAX.SWING OVER BED | 320 | 360 | 400 | 500 | 630 | 800 | 1000 | 1250/1400 | |
| MAX.SWUBG OVER SLIDE | 200 | 230 | 260 | 350 | 480 | 600 | 850 | ||
| MAX.PROCESSING LENGTH | 360 | 500/750 | 750/1000 | 750/1000/1500 | 1500/3000 | 1500/3000/6000/8000/100000 | |||
| GUIDEWAY WIDTH OF BED | 220 | 350 | 350 | 390 | 550 | 550 | 660/755 | 755/1100 | |
| X AXIS TRAVEL | 170 | 210 | 220 | 260 | 400 | 400 | 520 | 625 | |
| X/Z AXIS RAPID SPEED | 6/8 | 6/8 | 6/8 | 6/10 | 4/7 | 4/7 | 4/7 | 4/7 | |
| X/Z POSITIONING PRECISION | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 | 0.02/0.03 | 0.02/0.003 | 0.02/0.003 | 0.02/0.03 | |
| X/Z REPOSITIONING PRECISION | 0.008/0.012 | 0.008/0.012 | 0.008/0.012 | 0.008/0.012 | 0.01/0.015 | 0.01/0.015 | 0.01/0.015 | 0.01/00.15 | |
| ELLIPTICITY | 0.01 | ||||||||
| SURFACE ROUGHNESS | Ra1.6 | ||||||||
| SPINDLE SPEED RANGE | 50-3500 | 50-3000 | 50-2500 | 60-200 200-650 650-1600 | 40-125 110-350 290-950 |
15-500 | |||
| SPINDLE HEAD TYPE | A2-5 | A2-6 | A2-6 | C-5/C-8/ D-8 | C11/15 | C11/15 | |||
| DIA.OF SPINDLE THRU-HOLE | 40 | 52 | 56 | 66/82 | 105 | 105 | 130 | 130 | |
| SPINDLE HOLE TAPPER | MT5 | MT6 | MT6 | 105mm.1:20 | 1:20(120mm) | 1:20(120mm) | 1:20(140mm) | 1:20(140mm) | |
| CHUCK | 160(6") | 200(8") | 200(8") | 250(10") | 320(12") | 400(16") | 500(20") | 500(20") | |
| SPINDLE MOTOR POWER | 3.7/5.5 | 5.5 | 5.5 | 7.5 | 11 | 11/15 | 15 | 15 | |
| TOOL HOLDER TYPE | VERTICAL 4 STATIONS (HORIZONTAL6/8 STATIONS) | ||||||||
| TURING TOOL SIZE | mm | 20X20 | 25X25 | 30X30 | 35X35 | ||||
| TAILSTOCK SLEEVE TRAVEL | 90 | 100 | 120 | 150 | 250 | 250 | 250 | 250 | |
| TAILSTOCK SLEEVE DIA. | 46 | 52 | 60 | 75 | 100 | 100 | 100 | 100 | |
| TAILSTOCK SLEEVE TAPE | MT3 | MT4 | MT4 | MT5 | MT5 | MT5 | MT6 | MT6 | |
| N.W | KG | 18000 | 21000 | 24000 | 2600 | 3600 | 3900 | 6000/8500/13500 | |
| DIMENSION | m | 2.1x1.1x1.7 2.35x1.1x1.7 | 2.1x1.7x1.7 2.35x1.7x1.7 | 2.5x1.7x1.7 2.7x1.7x1.7 | 3.5x1.5x1.6 | 3.7x1.9x1.8 | 4.2x2x1.8 4.75x2x1.8 5.75x2x1.8 | ||
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
