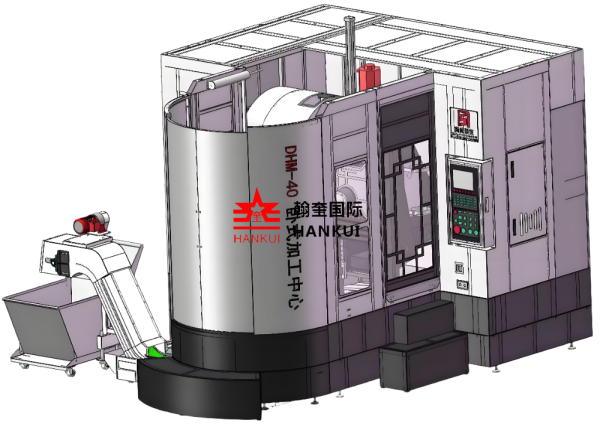

The machine tool operating system adopts ergonomic principles, with an independently designed control box that can rotate on its own and is easy to operate.
Using Taiwan belt type spindle, with high torque, high speed, low noise, fully meeting the requirements of boring, milling and drilling processing.
Made using a new resin sand casting technology, it has strong shock absorption and high precision.
After one clamping of the workpiece: automatic, efficient, and high-precision continuous processing of multiple sides and processes such as milling, drilling, boring, and reaming, achieving programmatic processing
| ITEM | SPECIFICATION | HMC40 | HMC50 | HMC63 | HMC80 | HMC100 |
WORKTABLE | WORKTABLE SIZE | 400x400 | 500x500 | 630x630 | 800x800 | 1000x1000 |
| Table quantty | 1 | 1/2 | 1/2 | 1/2 | 1/2 | |
| Index unit | 1x360°/0.001 | 1x360°/0.001 | 1x360°/0.001 | 1x360°/0.001 | 1x360°/0.001 | |
| Table max.load | 350kg | 600kg | 950kg | 1500kg | 2000kg | |
| Max.workpiece swing da. | 600mm | 750mm | 820mm | 1600mm | 1800mm | |
TRAVEL | X.axis.travel | 650 | 740 | 1050 | 1300 | 1400 |
| Y.axis.travel | 450 | 680 | 750 | 1000 | 1000 | |
| Z.axis.travel | 500 | 650 | 900 | 1000 | 1000 | |
SPINDLE | Distance between spindle center line to table centet | 100--650 | 0-680 | 0-750 | 0-1000 | 0-1000 |
| Distance between spinde nose totabie center | 90-590 | 130-780 | 130-1030 | 200-1200 | 200-1200 | |
| spinde speed | 10000rpm | 6000 | 6000 | 6000 | 6000 | |
RAPID SPEED | x/y/zaxis | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 |
| Baxis | 10r/min | 10r/min | 10r/min | 10r/min | 10r/min | |
| POSITIONNP ACCURACY | x/y/zaxis | 0.008 | 0.001 | 0.001 | 0.012 | 0.012 |
| Baxis | 10 | |||||
| RE-POSITONNGACCURACY | x/y/zaxis | 0.005 | 0.006 | 0.006 | 0.008 | 0.008 |
| Baxis | 5 | |||||
NET WEIGHT | ght | 3800kg | 8000 | 9000 | 13000 | 20000 |
OVERALLDIMENSION | 2700x2100x2450 | 2900x2600x2700 | 3210x2890x2685 | 3875x3380x3700 | 4425x3380x3700 | |
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
