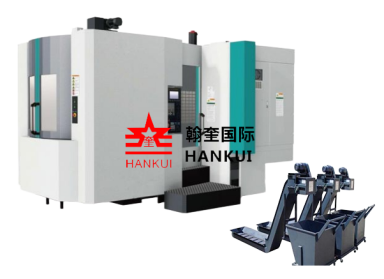

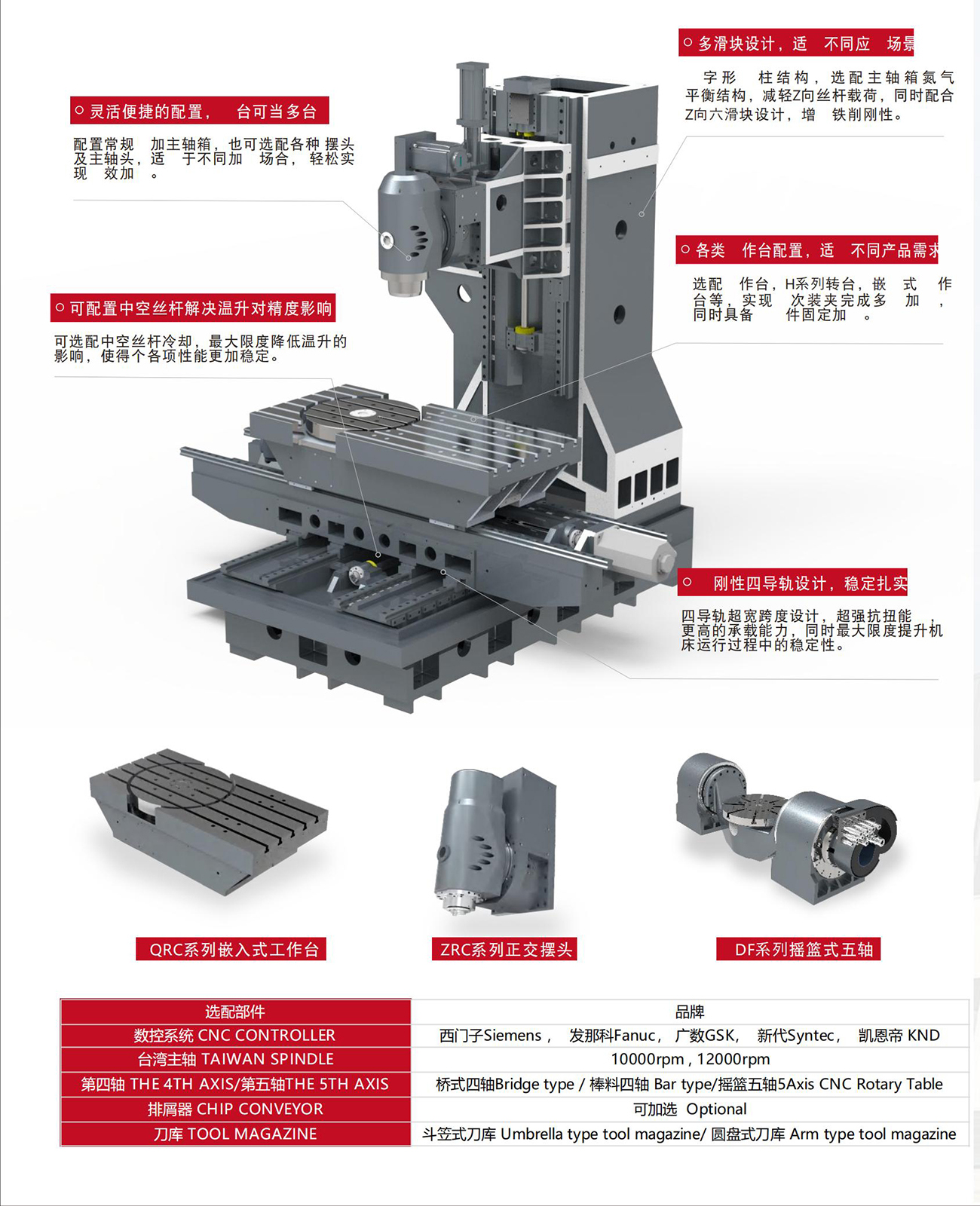

The machine tool operating system adopts ergonomic principles, with an independently designed control box that can rotate on its own and is easy to operate.
Using Taiwan belt type spindle, with high torque, high speed, low noise, fully meeting the requirements of boring, milling and drilling processing.

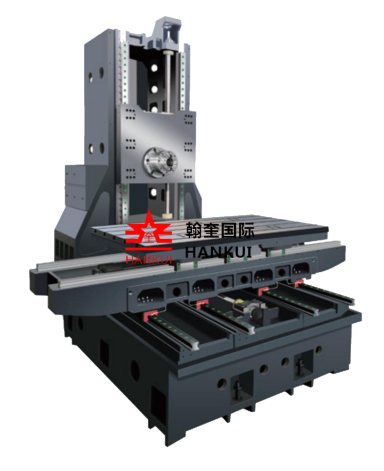

Made using a new resin sand casting technology, it has strong shock absorption and high precision.
After one clamping of the workpiece: automatic, efficient, and high-precision continuous processing of multiple sides and processes such as milling, drilling, boring, and reaming, achieving programmatic processing

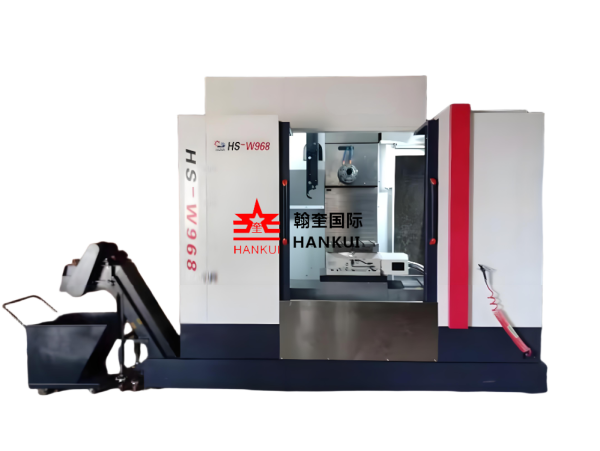

| ITEM | HS-W400 | HS-W960 | HS-9608 | HS-W1160 | HS-W1168 | HS-1380 | |||
| WORKTABLE | 400X800 | 1000X600 | 1000X600 | 1200X600 | 1200X600 | 1400X800 | |||
| MAX.LOAD CAPACITV | 400kg | 600kg | 600kg | 800kg | 800kg | 1000kg | |||
| X-AXIS TRAVEL | 650 | 900 | 900 | 1100 | 1100 | 1300 | |||
| Y-AXIS TRAVEL | 420 | 600 | 800 | 600 | 800 | 800 | |||
| Z-AXIS TRAVEL | 500 | 600 | 600 | 600 | 600 | 960 | |||
| DISTANCE FROM SPINDLE CENTERTO WORKTABLE CENTER | 100-650 | 309-909 | 309-1109 | 309-909 | 309-1109 | 50-1170 | |||
| DISTANCE FROM SPINDLE CENTER | 90-590 | 73-673 | 73-673 | 73-673 | 73-673 | ||||
| SPIDLESPEED/TOOL SHANK | 1000rpm/bt40 | 8000rpm/bt40 | 8000rpm/bt40 | 8000rpm/bt40/50 | 8000rpm/bt40/50 | ||||
| BALL SCREWX/Y/Z AXIS BALL SOREW | 40X12 | 40X16 | 40X12 | 40X12 | 40X12 | ||||
| RAPID SPEEDX/Y/Z | 36/36/30 | 36/36/30 | 36/36/30 | 36/36/30 | 36/36/30 | ||||
| POSITONNG ACCURACYX/Y/Z | 0.01 | 0.012 | 0.012 | 0.012 | 0.012 | ||||
| RE-POSITONNGACCURACY.X/Y/Z | 0.005 | 0.006 | 0.006 | 0.006 | 0.006 | ||||
| WACHINE N.W | 4500kg | 6000 | 6200 | 7000 | 7500 | 8700 | |||
| DIMENSION | 2800X1800X2450 | ||||||||
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The casting wood type of this machine tool adopts aluminum wood combination, resin sand casting, worktable HT300, and the rest are TH250. And after two manual aging treatments, it has good stability, high strength, and stable and reliable accuracy in all a
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
