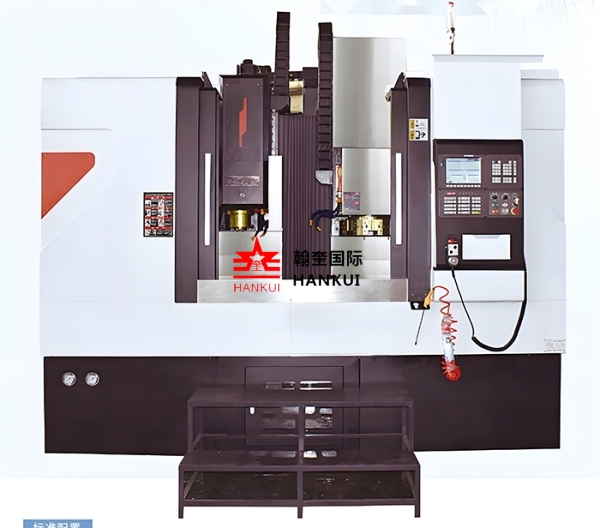

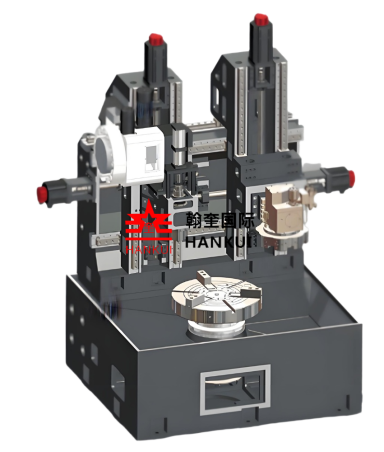

This series of machine tools is a crossbeam structure, with a vertical column supporting slider in the X direction for full stroke. The dynamic column slider is equipped with three roller line gauges, making the structure compact and rigid. Configure tool library, one-time programming setting, workpiece turning, milling, grinding, and drilling can be fully automated for completion
| ITEM | VTC500 | VTC650 | VTC750 | VTC850 | VTC1000 | VTC1250 | VTC1400 | VTC1600 |
Maximum turning diameter | 500 | 650 | 750 | 850 | 1000 | 1250 | 1400 | 1600 |
| Maximum turning diameter | 350 | 500 | 600 | 700 | 850 | 1000 | 1200 | 1400 |
Spindle type | A2-8 | A2-11 | A2-11 | A2-15 | ||||
Spindle bearing diameter | 120 | 180 | 180 | 200 | ||||
Spindle speed range | 50-1250 | 50-1000 | 30-800 | 30-800 | 20-500Two-speed gearbox | 20-400Two-speed gearbox | 20-350Two-speed gearbox | |
Spindle output torque | 350 | 475 | 715 | 890 | 890 | 2100 | 2100 | 3000 |
Three jaw hydraulic chuck diameter | 12 | 15 | 21 | 24 | 32 | Manual Four-Jaw Chuck1000 | Manual Four-Jaw Chuck1250 | Manual Four-Jaw Chuck1400 |
Turret form | Horizontal Ten-Station | Horizontal eight-Station | Horizontal eight-Station/Vertical Four-Station | Vertical Four-Station | ||||
Turret specification | 80Center Height | 100Center Height | 125Center Height | 125Center Height | ||||
Tool specification | 25/φ40 | 25/φ40 | 32/φ50 | 32/φ50 | ||||
| Tool tower X-axis travel | -50-275 | -50-325 | -50-375 | -50-450 | -50-550 | -50-650 | -50/750 | -50-850 |
| Turret Z-axis travel | 500 | 550 | 700 | 800 | 800 | 800 | 800 | 800 |
| Distance between lower end face of turrent and upper end face of chuck | 0-500 | 0-550 | 0-700 | 0-800 | 0-800 | 150-950 | 150-950 | 150-950 |
X/Z wire gauge | 45Roller | 55Roller | 65/55Roller | 65Roller | ||||
| X/Z screw diameter | φ40 | φ50/φ40 | φ50 | φ63 | ||||
X-axis fast feed | 15 | |||||||
Z-axis fast feed | 12 | |||||||
| Cutting feed | 0.1-5000 | |||||||
X-axis motor power/torque | 1.6/10 | 2.4/15 | 2.4/15 | 2.8/18 | 3.5/22 | 3.5/22 | 3.5/22 | 4.7/30 |
Z-axis motor power/torque | 2.4/15 | 2.4/15 | 2.8/18 | 3.5/22 | 3.5/22 | 3.5/22 | 4.7/30 | 4.7/30 |
Spindle motor power/torque | 11/15-140 | 15/18.5-190 | 22/30-286 | 30/37-356 | 30/37-356 | 22/30-210(Equipped with a Two-Speed Gearbox) | 22/30-210(Equipped with a Two-Speed Gearbox) | 22/37-286(Equipped with a Two-Speed Gearbox) |
Length × width × height | 1.8×1.8×2.5 | 1.95×1.85×2.65 | 2.3×2×3 | 2.5×2.25×3.15 | 2.6×2.35×3.15 | 2.7×2.85×3.25 | 2.8×2.95×3.25 | 3.0×3.0×3.25 |
Machine weight (approx.) | 4200 | 5200 | 7200 | 9500 | 10500 | 12800 | 13800 | 15500 |
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
