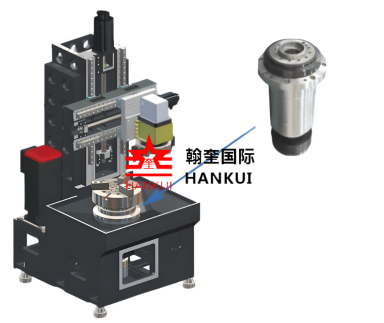

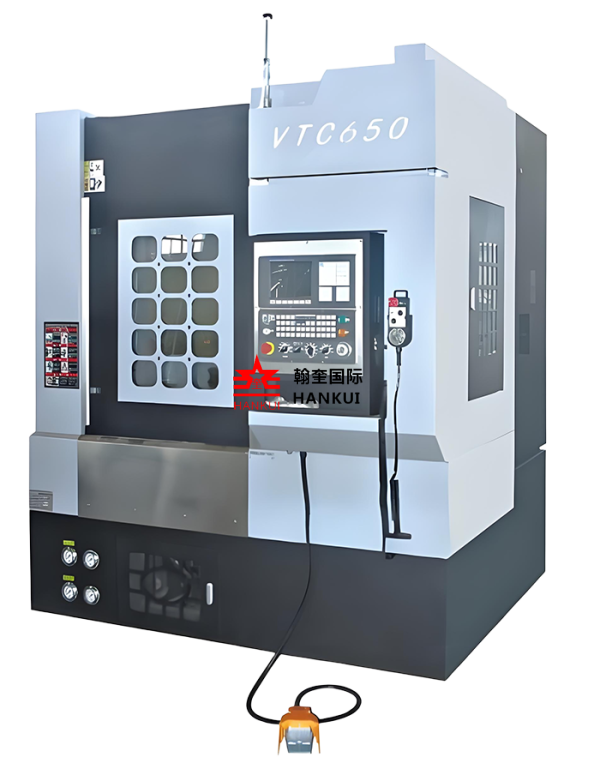

This type of vertical car is the most traditional structural type. A column is installed on the base, and a 7-axis lifting line gauge is installed on the column. The middle sliding seat is connected to the column through a line gauge block. The workbench completes the X-direction movement on the middle slide.
| ITEM | VTC500 | VTC650 | VTC750 | VTC850 | VTC1000 | VTC1250 | VTC1400 | VTC1600 |
Maximum turning diameter | 500 | 650 | 750 | 850 | 1000 | 1250 | 1400 | 1600 |
| Maximum turning diameter | 350 | 500 | 600 | 700 | 850 | 1000 | 1200 | 1400 |
Spindle type | A2-8 | A2-11 | A2-11 | A2-15 | ||||
Spindle bearing diameter | 120 | 180 | 180 | 200 | ||||
Spindle speed range | 50-1250 | 50-1000 | 30-800 | 30-800 | 20-500Two-speed gearbox | 20-400Two-speed gearbox | 20-350Two-speed gearbox | |
Spindle output torque | 350 | 475 | 715 | 890 | 890 | 2100 | 2100 | 3000 |
Three jaw hydraulic chuck diameter | 12 | 15 | 21 | 24 | 32 | Manual Four-Jaw Chuck1000 | Manual Four-Jaw Chuck1250 | Manual Four-Jaw Chuck1400 |
Turret form | Horizontal Ten-Station | Horizontal eight-Station | Horizontal eight-Station/Vertical Four-Station | Vertical Four-Station | ||||
Turret specification | 80Center Height | 100Center Height | 125Center Height | 125Center Height | ||||
Tool specification | 25/φ40 | 25/φ40 | 32/φ50 | 32/φ50 | ||||
| Tool tower X-axis travel | -50-275 | -50-325 | -50-375 | -50-450 | -50-550 | -50-650 | -50/750 | -50-850 |
| Turret Z-axis travel | 500 | 550 | 700 | 800 | 800 | 800 | 800 | 800 |
| Distance between lower end face of turrent and upper end face of chuck | 0-500 | 0-550 | 0-700 | 0-800 | 0-800 | 150-950 | 150-950 | 150-950 |
X/Z wire gauge | 45Roller | 55Roller | 65/55Roller | 65Roller | ||||
| X/Z screw diameter | φ40 | φ50/φ40 | φ50 | φ63 | ||||
X-axis fast feed | 15 | |||||||
Z-axis fast feed | 12 | |||||||
| Cutting feed | 0.1-5000 | |||||||
X-axis motor power/torque | 1.6/10 | 2.4/15 | 2.4/15 | 2.8/18 | 3.5/22 | 3.5/22 | 3.5/22 | 4.7/30 |
Z-axis motor power/torque | 2.4/15 | 2.4/15 | 2.8/18 | 3.5/22 | 3.5/22 | 3.5/22 | 4.7/30 | 4.7/30 |
Spindle motor power/torque | 11/15-140 | 15/18.5-190 | 22/30-286 | 30/37-356 | 30/37-356 | 22/30-210(Equipped with a Two-Speed Gearbox) | 22/30-210(Equipped with a Two-Speed Gearbox) | 22/37-286(Equipped with a Two-Speed Gearbox) |
Length × width × height | 1.8×1.8×2.5 | 1.95×1.85×2.65 | 2.3×2×3 | 2.5×2.25×3.15 | 2.6×2.35×3.15 | 2.7×2.85×3.25 | 2.8×2.95×3.25 | 3.0×3.0×3.25 |
Machine weight (approx.) | 4200 | 5200 | 7200 | 9500 | 10500 | 12800 | 13800 | 15500 |
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
