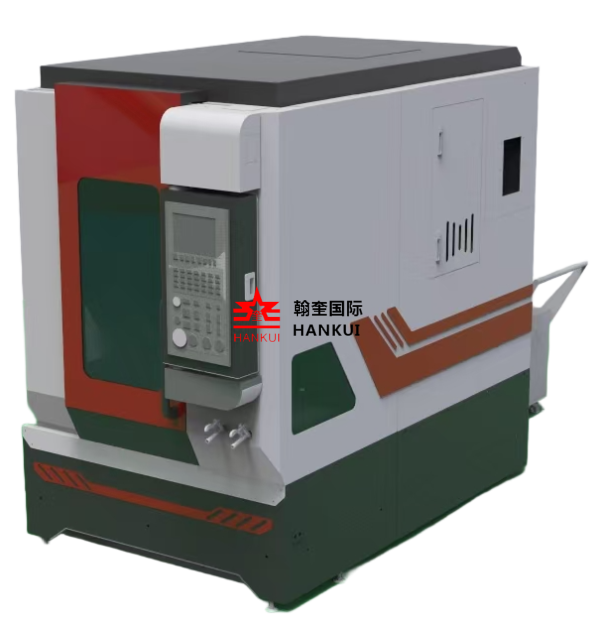

| ITEM | U260S | U400S | U500S | U650S | U800S | U1000S | |||||
X axis travel | 260mm | 400mm | 600mm | 650mm | 850mm | ||||||
Y axis travel | 260mm | 500mm | 700mm | 650mm | 950mm | ||||||
Z axis travel | 260mm | 350mm | 500mm | 550mm | 600mm | ||||||
Distance from spindle nose to table | 60-320mm | 135-485mm | 100-600 mm | 90-660mm | 90-690mm | ||||||
X/Y/Z axis guideway width | 25/25/25 | 30/35/30 | 35/35/35 | 45/45/45 | 55/55/55 | ||||||
X/Y/Z axis positioning accuracy | 0.006mm | 0.008mm | 0.008 mm | 0.008mm | 0.008mm | ||||||
X/Y/Z axis Repeated positioning accuracy | 0.005mm | 0.006mm | 0.006 mm | 0.006mm | 0.006mm | ||||||
A/C axis | A 轴 (A axis) | C 轴 (C axis) | A 轴 (A axis) | C 轴 (C axis) | A 轴 (A axis) | C 轴 (C axis ) | A 轴 (A axis) | C 轴 (C axis) | A 轴 (A axis) | C 轴 (C axis) | |
| Turntable diameter | Φ80/100/125/170/200mm | Φ250/320mm | Φ500 mm | Φ500/650mm | Φ500/650mm | ||||||
Load weight of the turntable | 95-200Kg | 350kg | 1000 kg | 1000kg | 1500kg | ||||||
Rotary range | ±110 | 360 | ±120 | 360 | ±120 | 360 | ±120 | 360 | ±120 | 360 | |
Positioning accuracy | ±5° | ±3° | ±5° | ±5° | ±8° | ±5° | ±5° | ±5° | ±5° | ±5° | |
Repeated positioning accuracy | ±6° | ±4° | ±4° | ±4° | ±4° | ±3° | ±4° | ±4° | ±3° | ±3° | |
Speed | 100r/min | 550r/min | 150r/min | 60r/min | 60r/min | 50r/min | |||||
Rated torque | 600Nm | 350Nm | 2400Nm | 1260Nm | 2400Nm | 1260Nm | |||||
Max.torque | 1360Nm | 550Nm | 1064Nm | 427Nm | 4244Nm | 2200Nm | 4244Nm | 2200Nm | |||
主轴Spindle | |||||||||||
Spindle speed / Taper | 32000rpm/HSK E40 | 12000rpm/HSK63A&BT40-150 | 20000rpm / BT40 | 18000rpm/BT40-150 | 15000rpm/ HSK-A63 | ||||||
Spindle motor power | 5.5/7.5kw | 7.5Kw | 20 kw | 22kw | 26/30kw | ||||||
X/Y/Z axis fast speed | 36m/min | 36m/min | 36 m/min | 36/36/24 m/min | 24r/min | ||||||
Machine weight | 2000kg | 4300kg | 7000 kg | 8500kg | 13000kg | ||||||
Machine size | 2090*1265*2000 | 3035×2985×2653 mm | 3835 X3000×2775mm | 4400 X5350 | |||||||

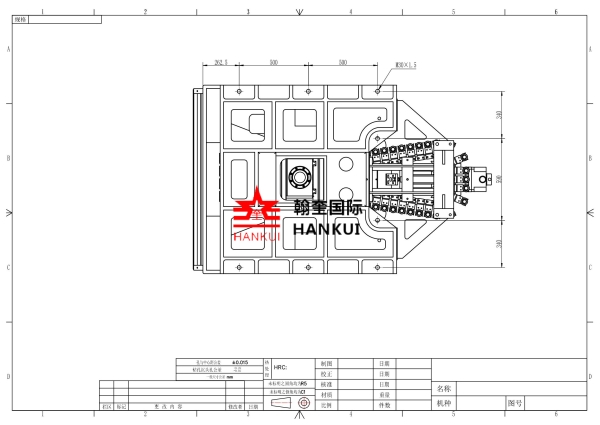

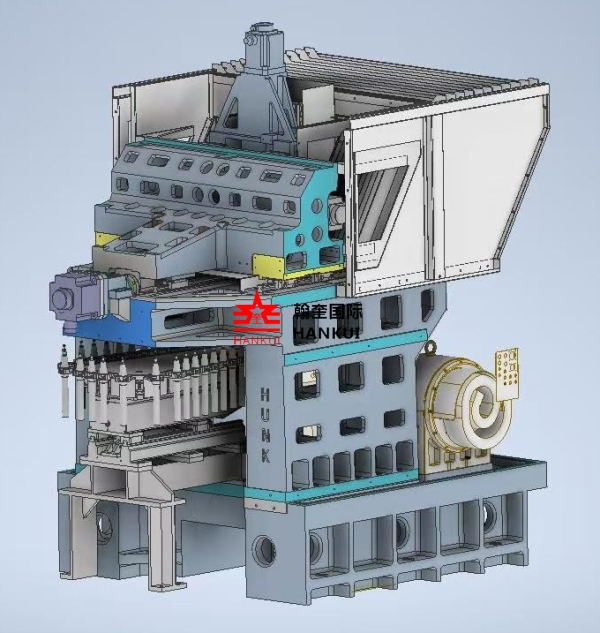

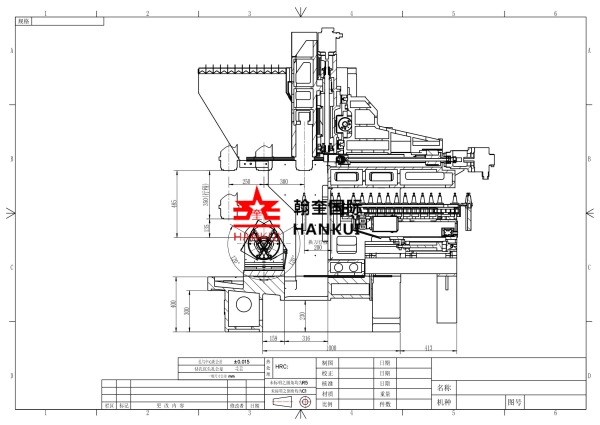

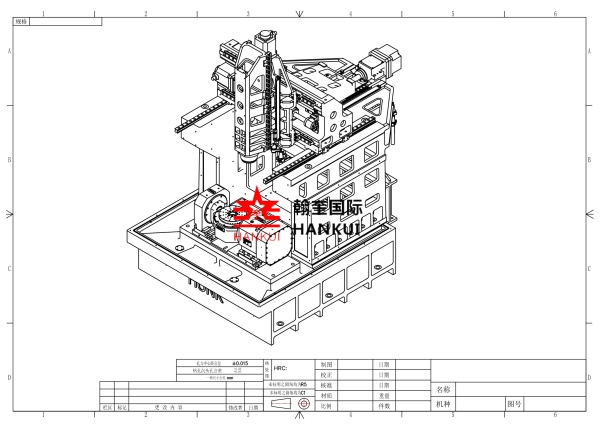

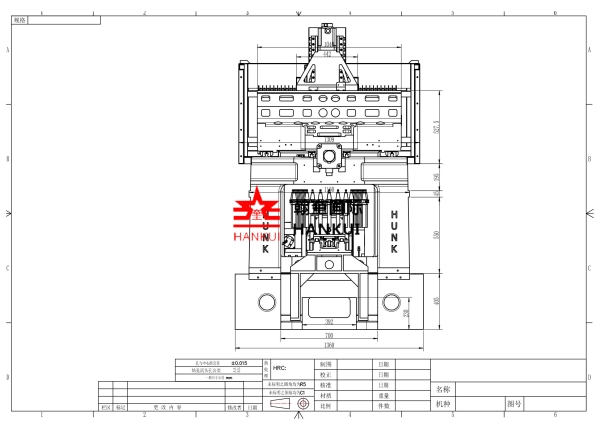

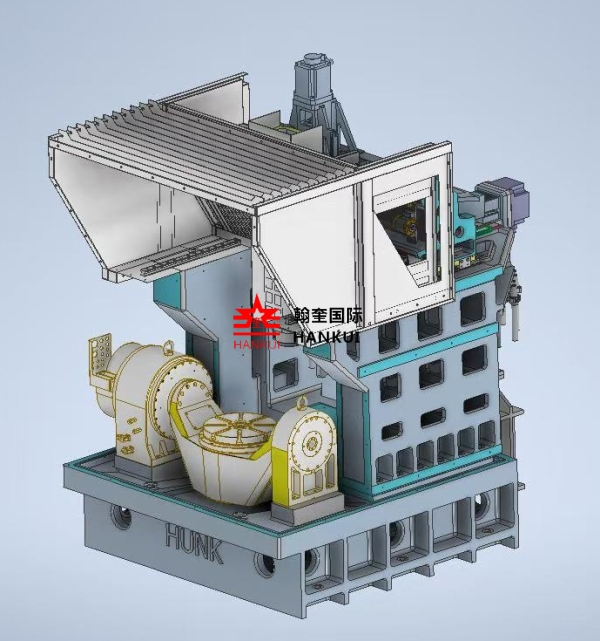

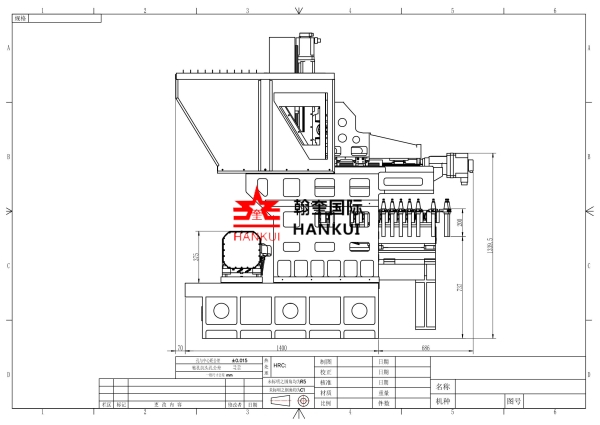

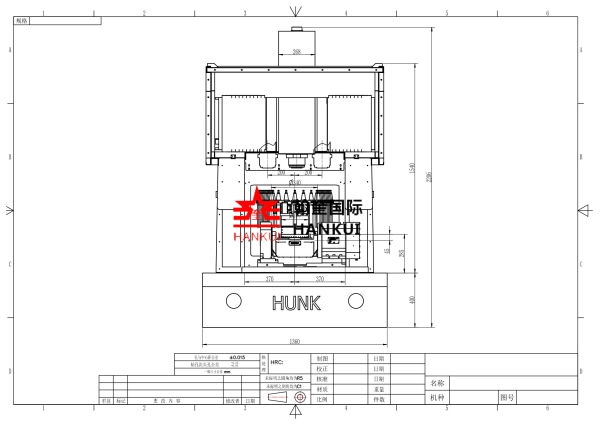

The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
The Casting Wood Type Of This Machine ToolAdoptsAluminum Wood Combination, Resin Sand Casting
